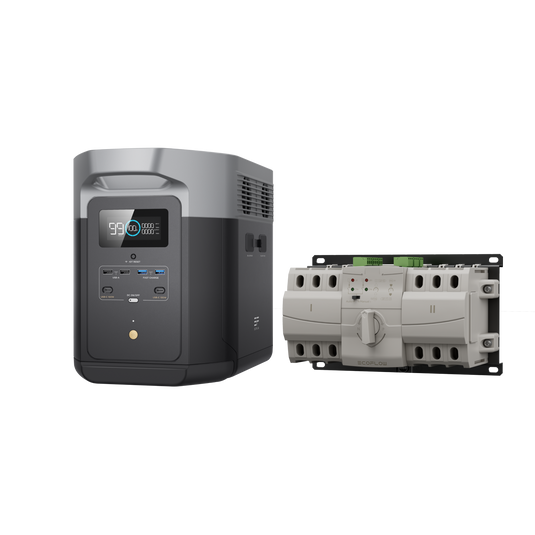

Plug and play home backup power
*Picture for reference only, subject to our available products.

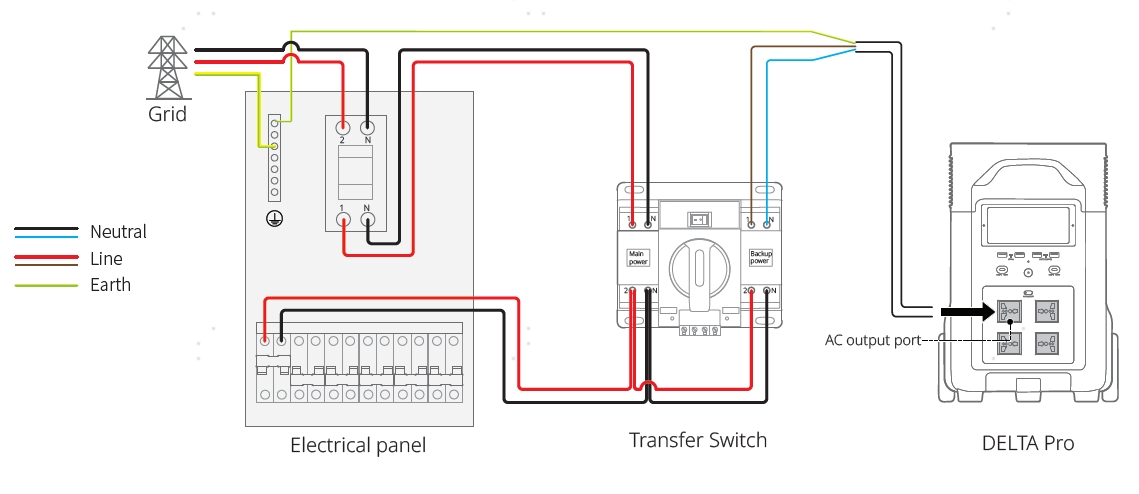

*AC Plug Cable is needed to connect Power Station with Transfer Switch, and be provided by the electrician.

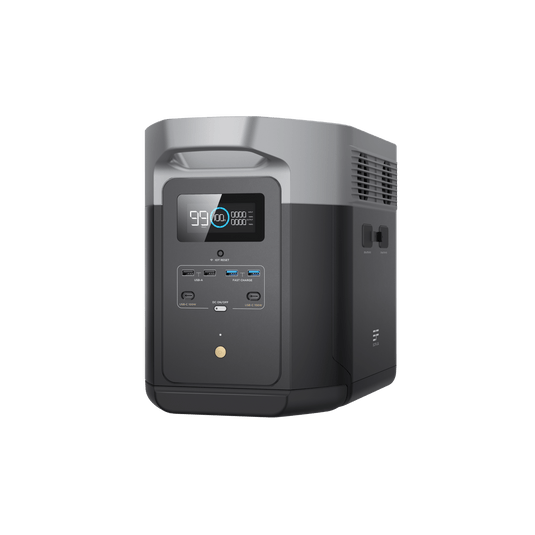

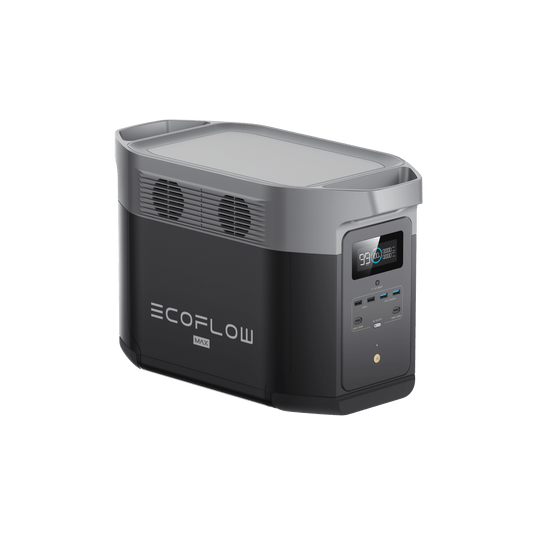

Backup your home during power outages with DELTA Max. With an expandable capacity that reaches up to 6kWh, dual charging, and the ability to power your home devices, you can stay powered on in any situation.
Expandable Capacity
Dual Charging
Power multiple devices
800W max Solar Input
Expandable home backup power.
A single DELTA Max unit packs a 2kWh capacity that is expandable up to 6kWh with DELTA Max smart extra batteries. This means when a blackout hits, you can continue to power your important home devices such as your fridge and lights for hours on end.
Convenient and fast dual charging.
DELTA Max charges up safely and rapidly from 0-80% in just 1 hour. And it gets even better. If you're looking for an even faster way to charge up DELTA Max, you can combine AC with the Smart Generator, AC with solar, or the Smart Generator with solar.
Power 99% of your home devices.
With EcoFlow's X-Boost technology, DELTA Max can power heavy-duty devices up to 3000W. That means during a power outage or blackout, you can continue to power your fridge, dryer, and more. That's the industry gold standard for a portable power station of this size and capacity.
Harness the power of the sun.
DELTA Max connects with up to 2x 400W EcoFlow solar panels to deliver 800W Max solar charging speeds. With a voltage range from 11-100V and the solar connector, you can also connect other solar panels to your DELTA Max. Even during cold or cloudy days, our smart maximum power point tracking (MPPT) algorithm automatically detects voltage and current in real time to give you optimum solar generation throughout the day.
Emergency backup power.
Disasters can occur at any time of the year, sometimes lasting longer than we ever expected. When extended blackouts hit, the EcoFlow Smart Generator serves as an emergency option that integrates with DELTA Max. It auto-starts when your DELTA Max hits a low level of charge, recharges your DELTA Max, and stops the engine all by itself once your DELTA Max hits a full charge. This gives you a reliable emergency backup option that relies on minimum use of a generator.
Control, monitor, and manage your energy use.
Control and monitor your DELTA Max with the EcoFlow app. Dive into the settings to customize your power use or control DELTA Max remotely.
Multiple ways to charge.
There are multiple ways to charge DELTA Max wherever you are. If you're at home, plug into an AC wall outlet or solar panels. If you're out and about, charge DELTA Max in your car or use solar panels if you've set up camp. In extreme emergencies during power outages, connect the DELTA Max to the Smart Generator for a last-standing power source.

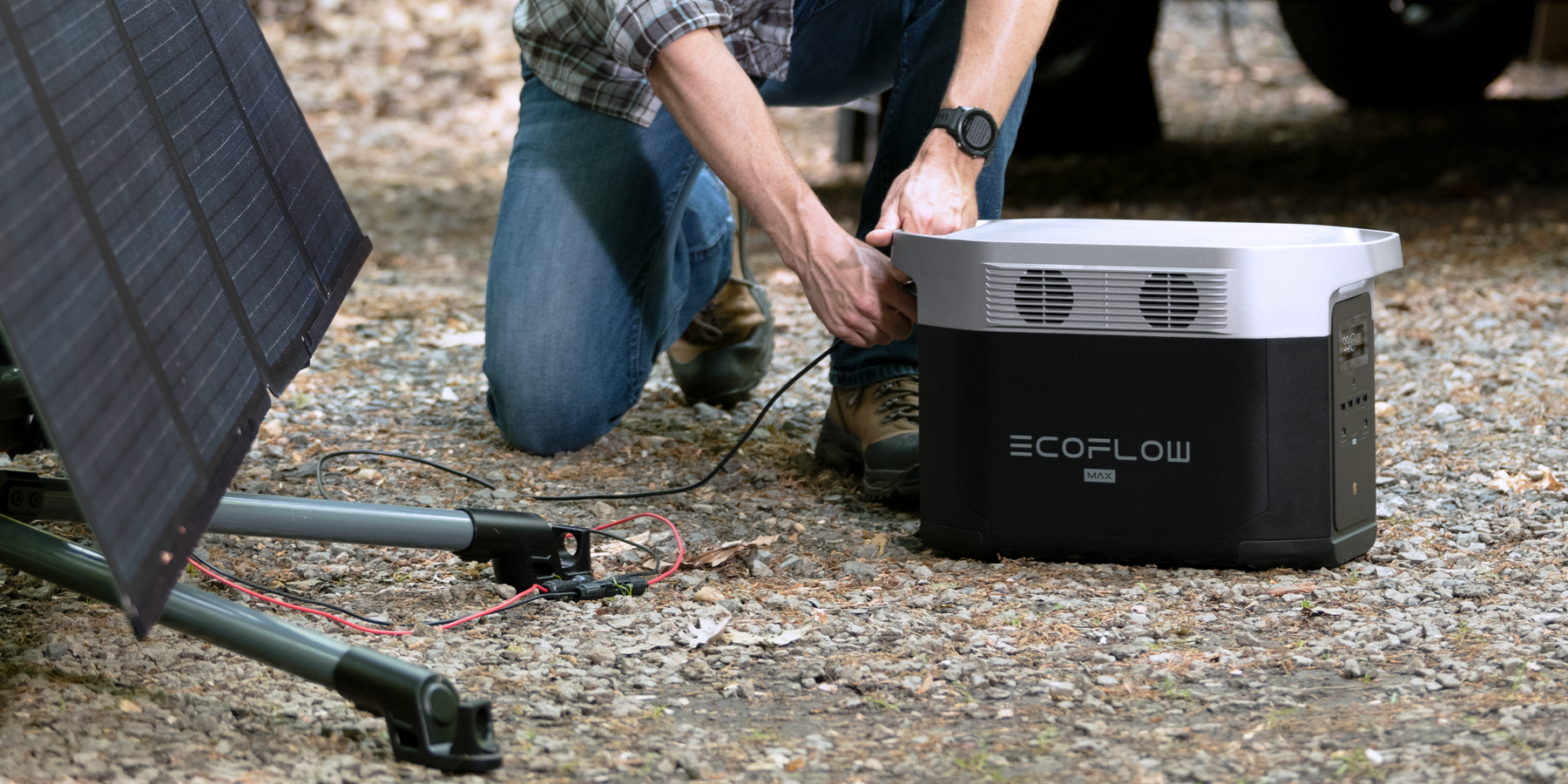

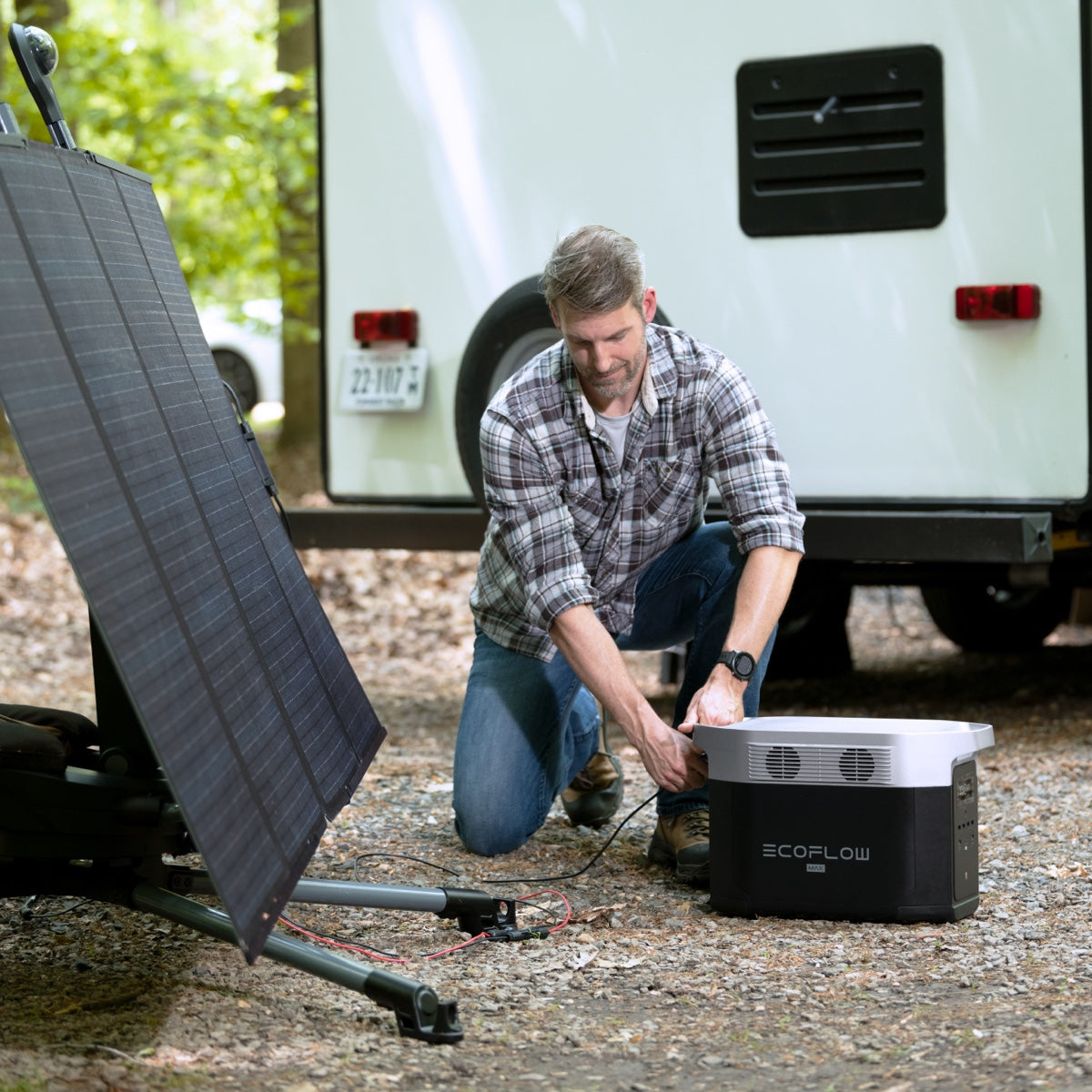

Solar charging

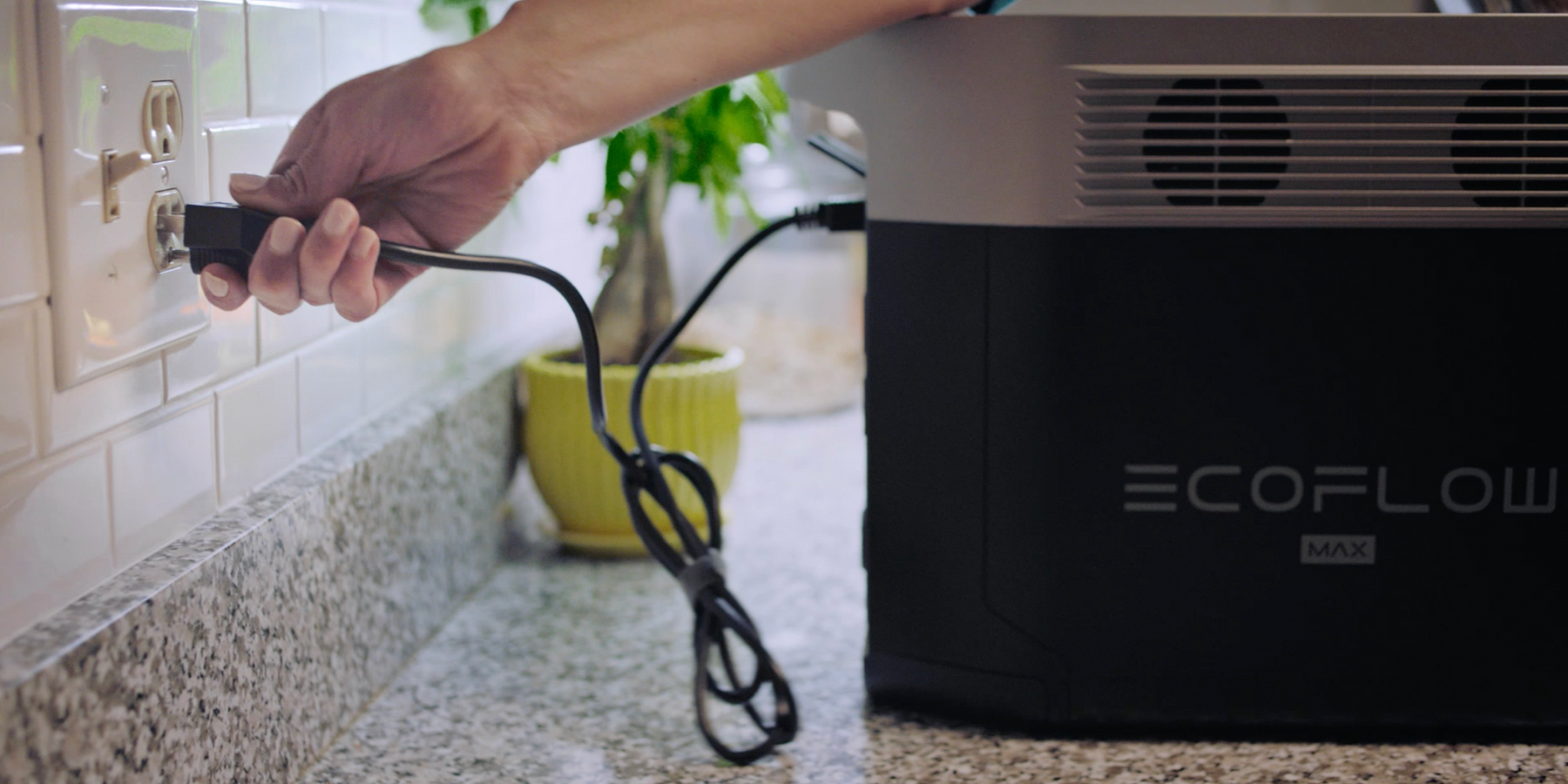

AC Charging

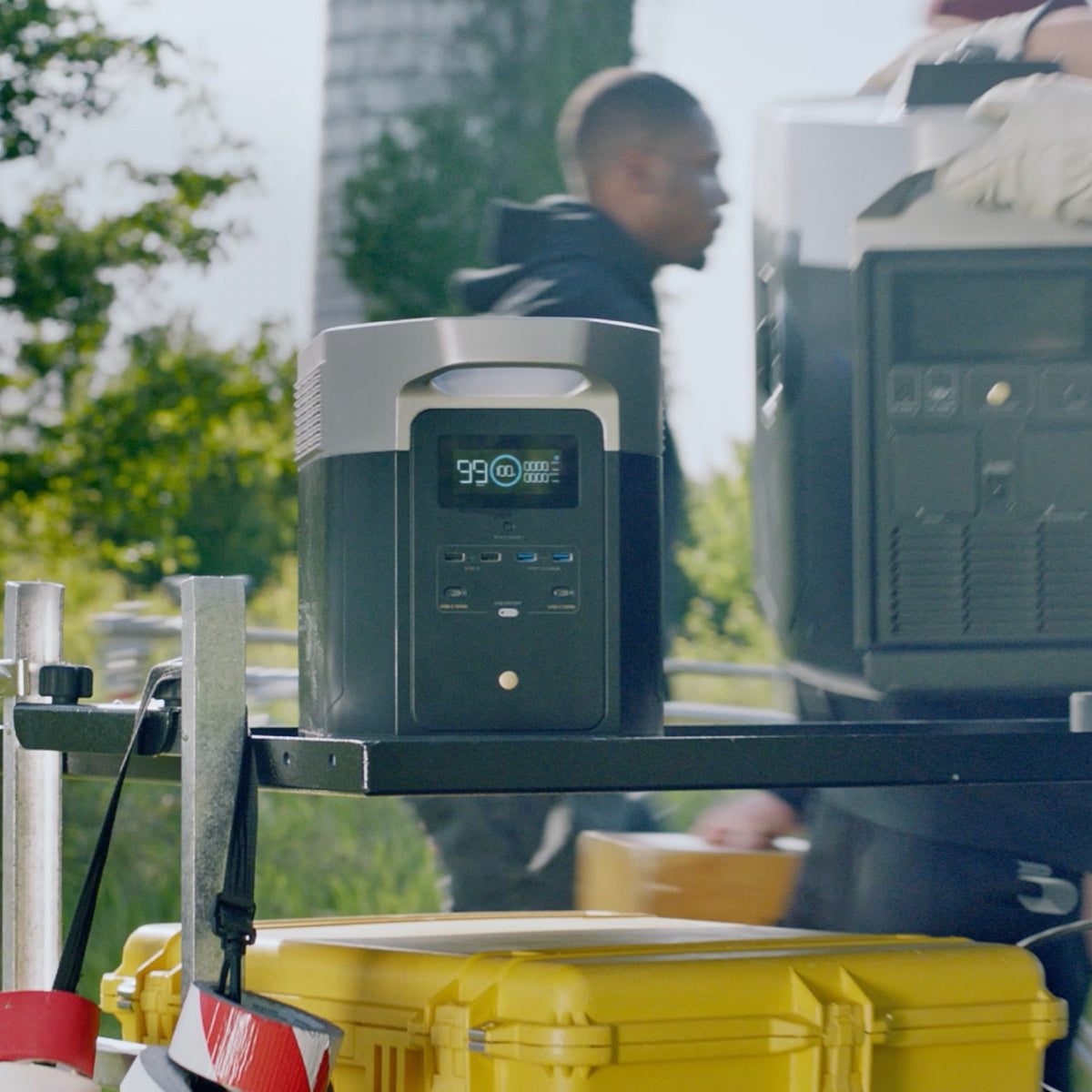

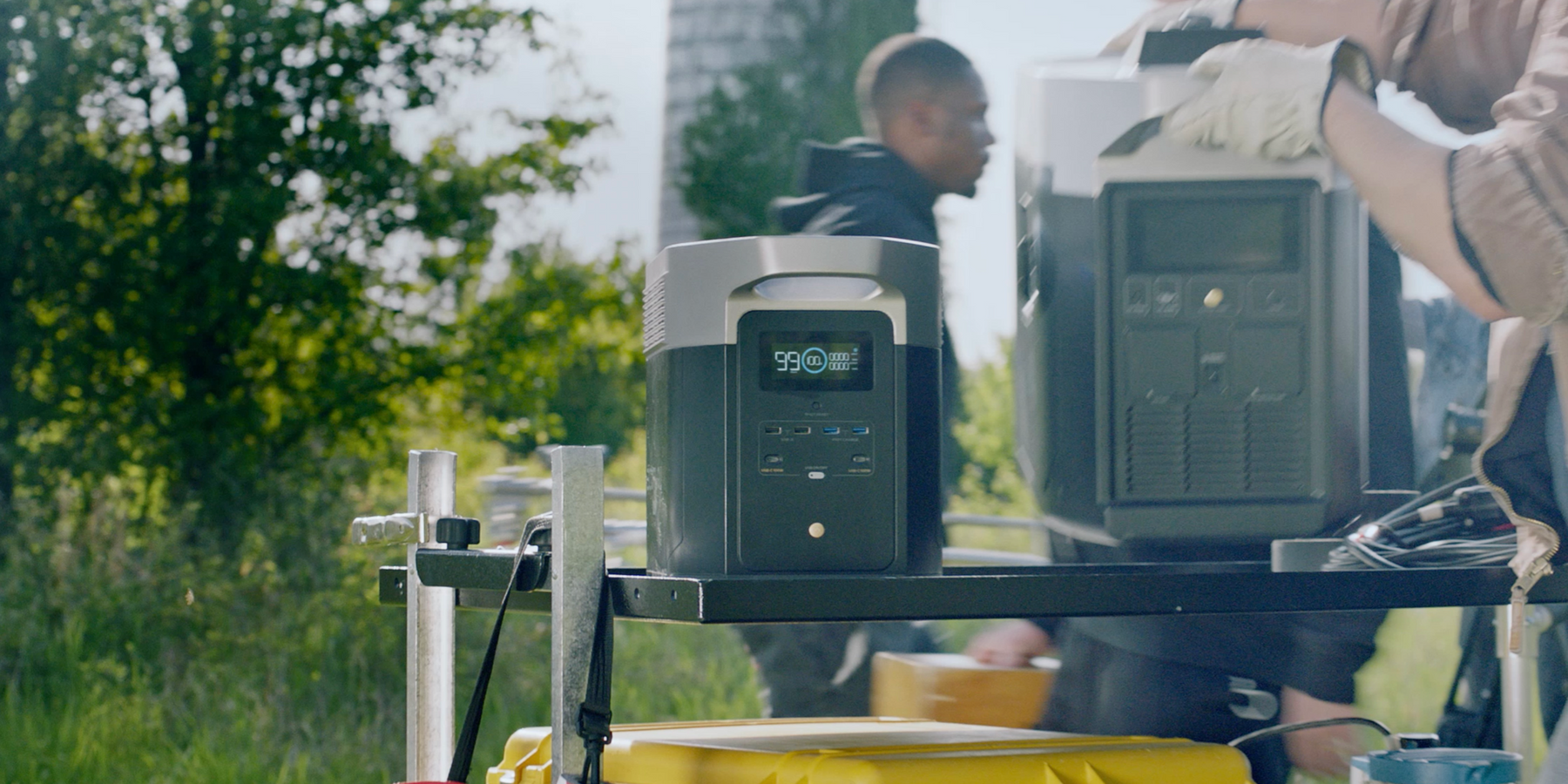

Smart Generator
Car charging
What's in the box
1.DELTA Max 2.AC Charging Cable 3.Car Charging Cable 4.DC5521 to DC5525 cable 5.User Manual
Frequently Asked Questions
b.Capacity difference: SHP has two ports and can be connected to 2 groups of DP (each group of DP can be connected to 2*DP EB); TS can be connected to a group of DP or a whole group of Power hub+LFP.
c.Different cables: SHP uses EF's unique Infinity cable (Delta Pro ONLY); TS uses Generator cord;
d. SHP can only connect to DELTA Pro, Transfer Switch can connect to all power stations (if power is satisfied).
Specs of DELTA Max (2000)
Net Weight
Approx. 48 lbs (22 kg)
Dimension
19.6 x 9.5 x 12 in (49.7 x 24.2 x 30.5 cm)
Charge Temperature
32 to 113°F (0 to 45°C)
Discharge Temperature
-4 to 113°F (-20 to 45°C)
Warranty
24 months
Charge Method
AC Wall Outlet, 12V Car Adaptor, Solar Panel, Smart Generator, Smart Extra Battery
Full Recharge Time
1.6 Hours (AC) 21 Hours (12V Car Charger) 5.6-11.2 Hours (Using 4x 110W Solar Panels) 4.2-8.4 Hours (Using 4x 160W Solar Panels) 3.2-6.3 Hours (Using 2x 400W Solar Panels)
Capacity
2016Wh
Cell Chemistry
NCM
Cycle life
800 cycles to 80%+ capacity
Management Systems
BMS, Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection
Testing and Certification
CE WEEE CTP RCM KC
AC Charge Input (Power)
X-Stream charge (2000W max)
AC Charge Input (Voltage and Amperage)
220-240V~50Hz/60Hz, 10A
Solar Charge Input
11-100V 13A Max, 800W max
Car Charge Input
Supports 12V/24V Battery, Default 8A
AC Output (x4)
Pure Sine Wave, 2400W total (surge 4600W), 230V~ (50Hz/60Hz)
Max Device(s) Power Supported by X-Boost
3000W
USB-A Output (x2)
5V 2.4A, 12W max, per port
USB-A Fast Charge (x2)
5V/2.4A, 9V/2A, 12V/1.5A, 18W Max
USB-C Output (x2)
5/9/12/15/20V 5A, 100W max
Car Charger Output (x1)
12.6V/10A, 126W max
DC5521 Output (x2)
12.6V/3A, per port
Smart Extra Battery
Supports up to 2 DELTA Max Smart Extra Batteries (sold separately)
Smart Generator
Supported (sold separately)
Wi-Fi
Supported
Specs of DELTA Max (1600)
Net Weight
Approx. 48 lbs (22 kg)
Dimension
19.6 x 9.5 x 12 in (49.7 x 24.2 x 30.5 cm)
Charge Temperature
32 to 113°F (0 to 45°C)
Discharge Temperature
-4 to 113°F (-20 to 45°C)
Warranty
24 months
Charge Method
AC Wall Outlet, 12V Car Adaptor, Solar Panel, Smart Generator, Smart Extra Battery
Full Recharge Time
1.6 Hours (AC) 16.8 Hours (12V Car Charger) 4.5-9 Hours (Using 4x 110W Solar Panels) 3.4-6.8 Hours (Using 4x 160W Solar Panels) 2.5-5 Hours (Using 2x 400W Solar Panels)
Capacity
1612Wh
Cell Chemistry
NCM
Cycle life
500 Cycles to 80%+ capacity
Management Systems
BMS, Over Voltage Protection, Overload Protection, Over Temperature Protection, Short Circuit Protection, Low Temperature Protection, Low Voltage Protection, Overcurrent Protection
Testing and Certification
CE WEEE CTP RCM KC
AC Charge Input (Power)
X-Stream charge (1600W max)
AC Charge Input (Voltage and Amperage)
220-240V~50Hz/60Hz, 10A
Solar Charge Input
11-100V 13A Max, 800W max
Car Charge Input
Supports 12V/24V Battery, Default 8A
AC Output (x4)
Pure Sine Wave, 2000W total (surge 4600W), 230V~ (50Hz/60Hz)
Max Device(s) Power Supported by X-Boost
2500W
USB-A Output (x2)
5V 2.4A, 12W max, per port
USB-A Fast Charge (x2)
5V/2.4A, 9V/2A, 12V/1.5A, 18W Max
USB-C Output (x2)
5/9/12/15/20V 5A, 100W max
Car Charger Output (x1)
12.6V/10A, 126W max
DC5521 Output (x2)
12.6V/3A, per port
Smart Extra Battery
Supports up to 2 DELTA Max Smart Extra Batteries (sold separately)
Smart Generator
Supported (sold separately)
Wi-Fi
Supported
Specs of Transfer Switch
Operation Mode
Auto/Manual
Poles
2P
Rated Current
63A
Transfer Time
1Sec
Electrical Life
1,500 times
Short-circuit switching (breaking) capacity
5kA
Phase
Single phase
Operating Frequency
50HZ/60HZ
Rated Voltage
AC 230V
Operating Temperature
-5℃~40℃
Mechanical Life
6,000 times
Short-circuit switching (making) capacity
7.65kA
*Please Note: The above weight, size, etc. have certain measurement errors. Please refer to the actual measurement.
Car charger shares power with the DC5521 output port offering maximum output of 126W.
Whether the product can be charged or discharged depends on the actual temperature of the battery pack
DELTA Max (2000) needs to be connected to the DELTA Max Smart Extra Battery for dual charging.
